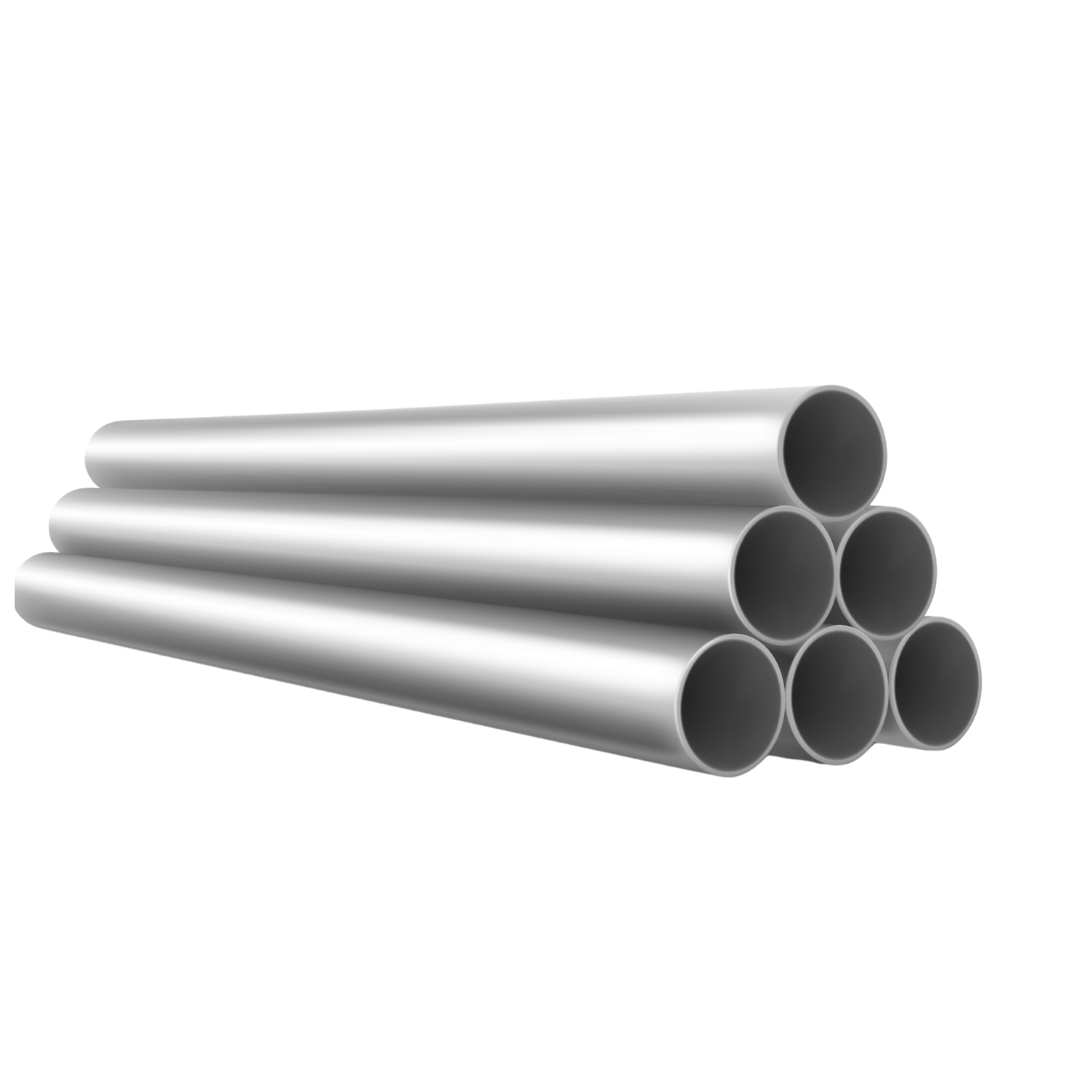

Stainless Steel Pipes
Raaj Tubes brings precision and expertise to the manufacturing of Austenitic, Super Austenitic, Duplex, and Super Duplex stainless steel welded pipes, using materials built to last. Our welded stainless steel pipes are known for their strength, excellent corrosion resistance, and smooth surface finish. With a complete in-house testing facility, we ensure consistent quality control at every stage of production.
Backed by state-of-the-art forming and welding technology, Raaj Tubes delivers products that meet the most stringent quality standards and demanding delivery schedules of global markets. The reliability of these pipes makes them a staple in chemical processing plants, gas pipelines, and mechanical frameworks used in industrial operations.
Require Stainless Steel Round Pipes?
| ROUND | Weight [kg/mtr]( Metric Sizes) | |||||||||
| Nominal Bore | Outside Diameter | Sch. 5S | Sch. 10S | Sch.40S | Sch. 80S | |||||
| mm | Inches | OD(MM} | mm | kg/m | mm | kg/m | mm | kg/m | mm | kg/m |
| 6 | 1/8″ | 10.3 | … | … | … | … | … | … | … | … |
| 8 | 1/4″ | 13.7 | … | … | 1.65 | 0.49 | 2.24 | 0.63 | … | … |
| 10 | 3/8″ | 17.1 | … | … | 1.65 | 0.63 | 2.31 | 0.84 | … | … |
| 15 | 1/2″ | 21.3 | 1.65 | 0.8 | 2.11 | 1 | 2.77 | 1.27 | … | … |
| 20 | 3/4″ | 26.7 | 1.65 | 1.02 | 2.11 | 1.28 | 2.87 | 1.69 | … | … |
| 25 | 1″ | 33.4 | 1.65 | 1.29 | 2.77 | 2.09 | 3.38 | 2.5 | … | … |
| 32 | 1-1/4″ | 42.2 | 1.65 | 1.65 | 2.77 | 2.69 | 3.56 | 3.39 | … | … |
| 40 | 1-1/2″ | 48.3 | 1.65 | 1.9 | 2.77 | 3.11 | 3.68 | 4.05 | 5.08 | 5.41 |
| 50 | 2″ | 60.3 | 1.65 | 2.39 | 2.77 | 3.93 | 3.91 | 5.44 | 5.54 | 7.48 |
| 65 | 2.5″ | 73 | 2.11 | 3.69 | 3.05 | 5.26 | 5.16 | 8.63 | 7.01 | 11.41 |
| 80 | 3″ | 88.9 | 2.11 | 4.52 | 3.05 | 6.46 | 5.49 | 11.29 | 7.62 | 15.27 |
| 90 | 3.5″ | 101.6 | 2.11 | 5.18 | 3.05 | 7.41 | 5.74 | 13.57 | 8.08 | 18.64 |
| 100 | 4″ | 114 .30 | 2.11 | 5.84 | 3.05 | 8.37 | 6.02 | 16.08 | 8.56 | 22.32 |
| 125 | 5″ | 141.3 | 2.77 | 9.46 | 3.4 | 11.56 | 6.55 | 21.77 | … | … |
| 150 | 6″ | 168.3 | 2.77 | 11.31 | 3.4 | 13.83 | 7.11 | 28.26 | … | … |
| 200 | 8″ | 219.1 | 2.77 | 14.78 | 3.76 | 19.97 | 8.18 | 42.55 | … | … |
